3FE Gpon Epon Compatible Modem

Name: 3FE Gpon Epon Compatible Modem
Brand: UT-King
Price: 15 USD

Wholesale 3FE Gpon Epon Compatible Modem from china suppliers

Brand Name : UT-King

Model Number : UT-XP6421

Certification : iso

Place of Origin : China

MOQ : 1 PCS

Price : 15-18 usd/pcs

Payment Terms : T/T, Western Union, MoneyGram,Credit Card

Supply Ability : 1000pcs/week

Delivery Time : 3-7 days

Packaging Details : 1pcs/1box 20pcs/carton

Product Name : Xpon onu

Brand : UT-King

Function : 1ge+3fe+1tel+wifi

Wavelength : Tx 1310nm, Rx1490nm

Name : WIFI XPON ONU

MOQ : 1 PCS

OEM : YES

Applications Distance : 20km

Chipset : Realtek, RTL9603C+RTL8192

External Power Supply : DC 12V/1A

Dimension : 200mm*140mm*40mm

Weight : 0.7kg/pcs

Packing : 20pcs/carton

Gross Weight : 14kg

Contact Now

UT-King XPON ONU FTTH Fiber Optic Modem Optical Network Unit 1GE+3FE+WIFI XPON ONT

Description

XPON ONU(UT-XP6421) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its XPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one XPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.

Features

Complies with ITU-T G.984. x and IEEE802.3x, provides comprehensive GPON and EPON network compatibility

Downstream rates of up to 2.488Gbps and upstream rates up to 1.244Gbps
Fiber access and gigabit port provide incredibly fast transfer speeds
Supports OMCI and OAM remote management

Specification

Model No.	UT-XP6421
Interface	1 SC/UPC Port or 1 SC/APC Port; 1 10/100/1000Mbps RJ45 Port; 3 10/100/1000Mbps RJ45 Port; 1 POTS,RJ11 Port； 1 WIFI(802.11b/g/n, 2T2R, 300Mbps,two external antenna)
Chipset	Realtek, RTL9603C+RTL8192
Data Rates & Wavelength	Upstream:1.244Gbps, 1310nm Downstream:2.488Gbps, 1490nm
Distance	0~ 20Km Max
External Power Supply	DC 12V/1A
Dimensions (Length * Width * Height)	145mm×105mm×25mm
Weight (Full-Loaded)	≤0.4kg
Working temperature	0°C～40°C
Storage temperature:	-40°C～70°C
Relative humidity:	10%～90%, non-condensing

Item	XP6421
Quality of Service	Service Flow Classification based on VLAN Schedule rules Support SP/WRR Upstream Priority Label Support 802.1D User Priority Rate Limit and Traffic shaping Congestion CONUrol Support Tail-Drop
Advanced Features	Upstream and Downstream FEC Dynamic Bandwidth Allocation(DBA) support NSR/SR Up to 7 T-CONUs and 4095 GEM Ports Optical power detection, Dying Gasp Terminal Silent mechanism 802.3az EEE Energy Conservation
VLAN	802.1Q tag VLAN VLAN transparent mode/VLAN translation mode/VLAN trunk mode Authentication based on SN and Password VLAN Auto Detect
Security	AES Encryption Packet Filter based on VLAN
Voice	Call protocol: SIP (IMS compatible), seamless compatible with all popular call agent. Integrate heartbeat function and support active/standby call agent. Voice coding: ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729, auto-negotiate with call agent. Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length. Support high/low speed fax/Modem, bypass fax, and T38 fax. Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service. Multi-party conferencing. Line testing according to GR-909. IP address assignment: dynamic PPPoE/DHCP Client and static IP. Support WEB, CLI, TR069. Integrated OAM, XML, DHCP option 66 & 67 for auto configuration and firmware upgrade. Call loss is less than 0.01%.
WIFI	Integrated 802.11b/g/n, 300Mbps, 2T2R. Support 128 connections. Support WEP and WPA/WPA2 security protocols.
Management	Managed by Web, OMCI and Telnet, Specified the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic
IGMP	IGMP v2/v3 IGMP Snooping/Proxy

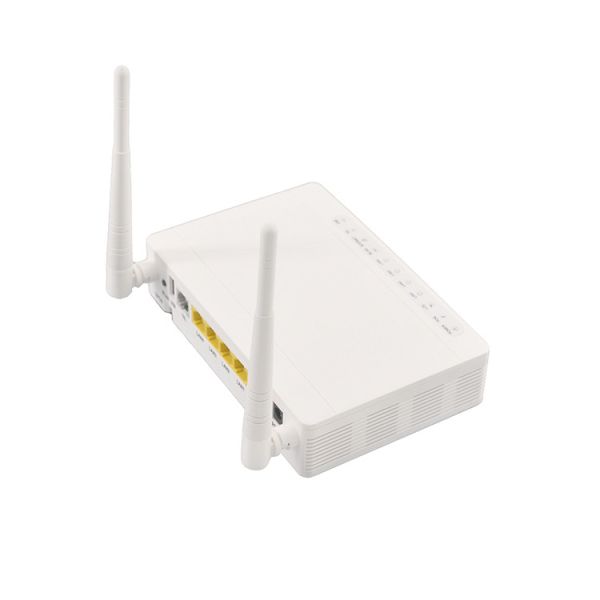

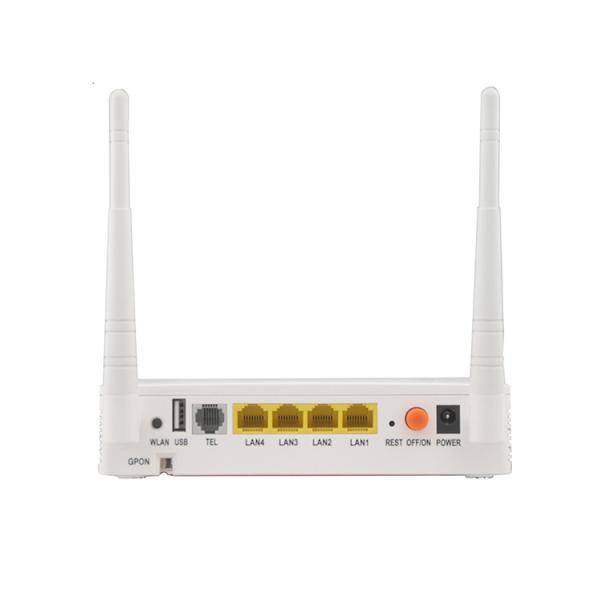

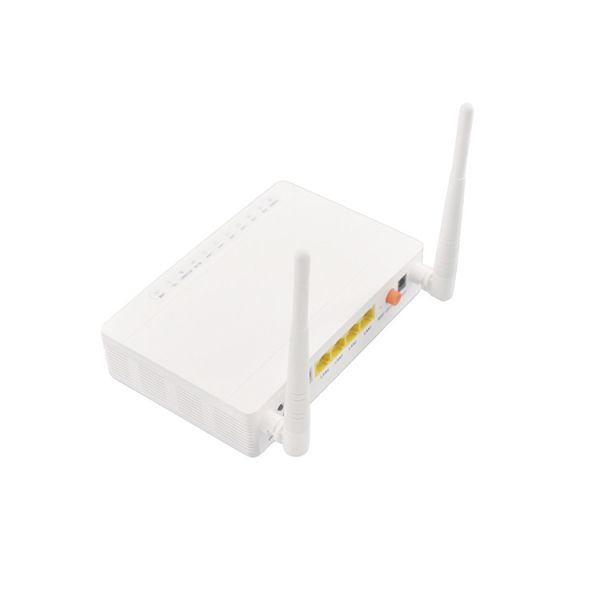

Detailed Images

FAQ

Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.

Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.

Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
